What Is a Continuity Test?
Continuity Test is an electrical check that determines whether a complete conductive path exists between two points. A meter sends a small test signal through a de-energized circuit and indicates whether the path is continuous. The result helps identify open wires, loose connections, damaged conductors, or closed switch contacts during troubleshooting.
Quick Facts About Continuity Test
Category
Electrical diagnostic test
Used for
Finding open circuits and connection faults
Common confusion
Continuity is not the same as voltage
Also called
Electrical Continuity Test, Continuity Check
Often discussed with
Electrical Troubleshooting
Key Takeaways About Continuity Test
- The test checks for a complete conductive path.
- Testing requires a de-energized circuit.
- Continuity does not prove safe operating voltage.
How Continuity Test Works

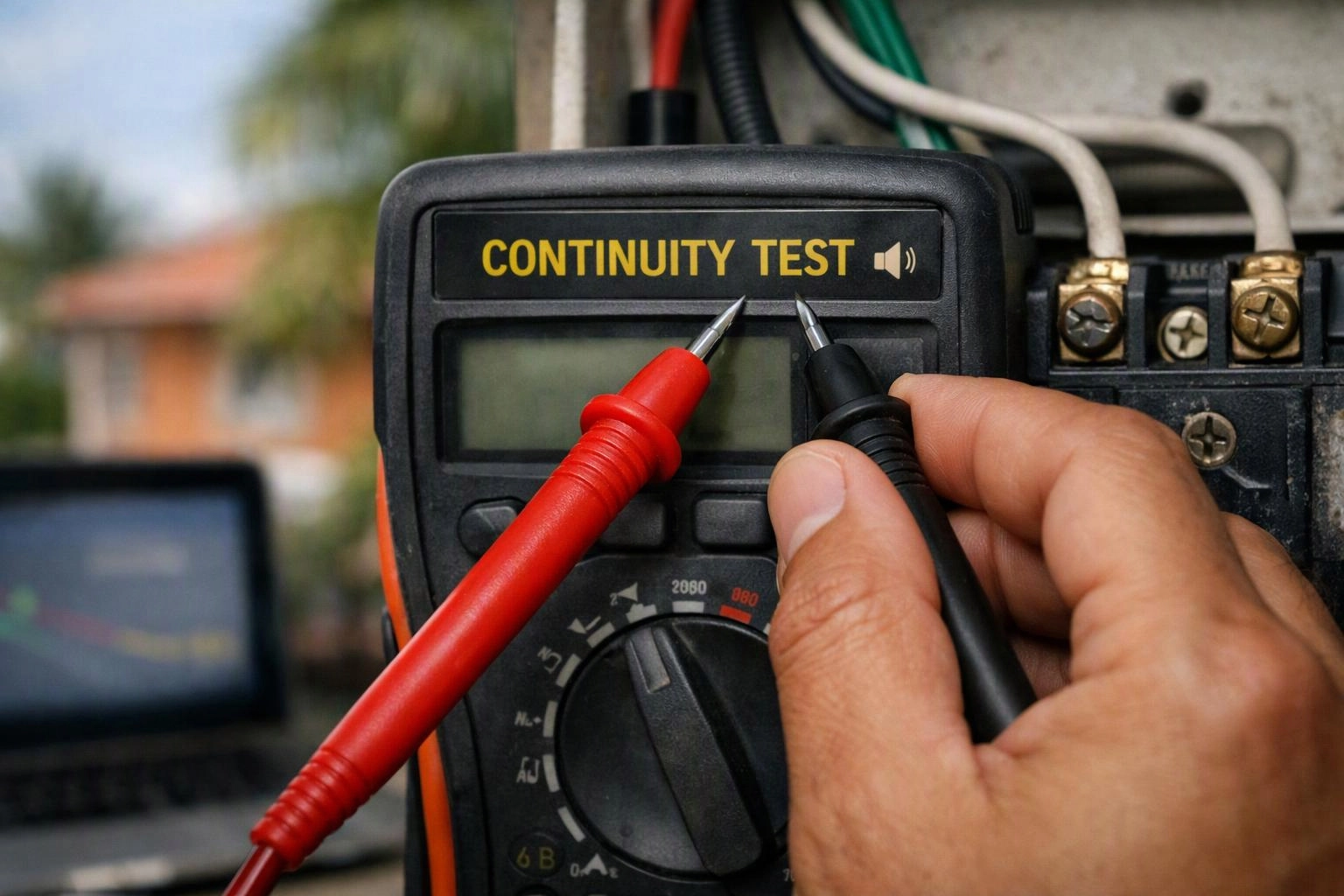

A Continuity Test uses a multimeter or dedicated continuity tester to check whether two points share an unbroken electrical path. The tester applies a small signal while the circuit remains de-energized. A tone or low resistance reading usually indicates a connected path, while no tone or an open reading points to a break.
Related glossary terms: Branch Circuit, Ground Wire, Neutral Wire.
Technicians can test a conductor from end to end, a fuse, a switch, or a connection. A useful result depends on isolating the circuit from power and separating connected components that could create an unintended path. Resistance readings add context, while voltage testing answers a different question about electrical potential.
From the Earth Electric team
When we perform continuity testing, we first identify the circuit section that may be open and confirm that power is off. We then test conductors and connections separately, because a connected component can create a misleading path. Our team records the result alongside voltage and visual checks during Electrical Troubleshooting.
Continuity Test in Practice: A Real-World Example
A wall switch may fail to control a light because a conductor is loose inside a box. During Electrical Troubleshooting, a technician can test the conductor and switch contacts separately to locate the open path.
